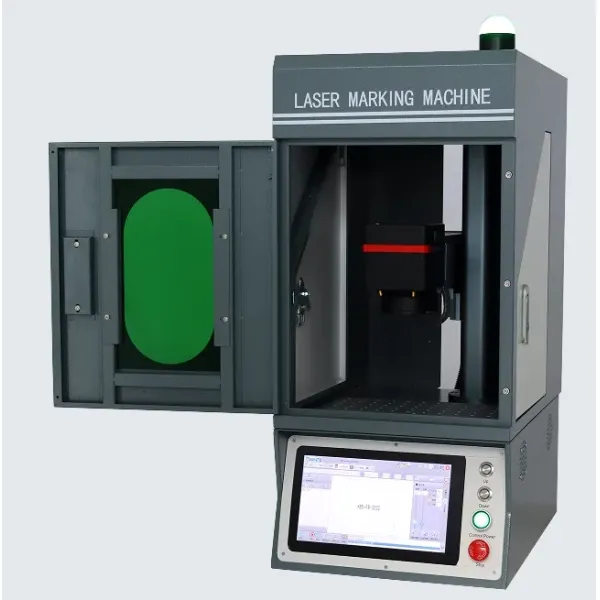

20W Fiber Laser Engraving Machine with Lift Table Automatic Lifter
I Product Introduction:
GQ 20B are design for marking small and delicate workpieces. For such a small size marking system, you can simply put it on your working table. With our powerful laser source, focus finder system, piolt laser, user-friendly software, motorized Z axis, you can turn your desktop into a small laser marking station. Your design and marking process will be simple and easy.
II Product Features:
- Low power consumption with no consumables.
- Low product depreciation cost.
- Long-time maintenance-free.
- Long working time, over 100,000 hours.
- Operate with batteries or supply from automobile ci-garette lighter in case of power failure.
- The electro-optical conversion efficiency of fiber laser marking can reach to 90% or above.
III Technical Parameter:
| Beam Quality |
<1.5 |
| Laser Repetition Frequency |
≤100KHz |
| Marking Area |
110mm x 110mm |
| Marking Speed |
≤12000mm/s |
| Min. Line Width |
0.01mm |
| Repetition Precision |
±0.001mm |
| Power Consumption |
≤500W |
| Power Supply |
220V/50Hz/10A |
IV Product Application:
For metal as well as plastic product.
Widely used in the marking of gold, silver diamond and other jewelries, sanitary tools, food packaging,
tobacco packaging, beer and beverage packaging, pharmaceutical packaging, medical equipments, watches
& glassware, automotive parts, plastic & paper material, electronic hardware, gold bullion, and also in
other areas suchs as aviation, aircraft manufacturing, projectile body and explosion proof materials.
V Exhibition: METAV 2018
VI Packaging Details:
- Package: 880x1000x370 mm
- Machine head: 300x520x570 mm
- Table: 460x450x180 mm
- Gross Weight: 52 kg
- Net Weight: 42.6 kg
- Machine head: 27.2 kg
- Controller:15.4 kg
VII Company Info:
Founded in 2001, HBS has 17 years experience in laser industry.
HBS has acquired quality certifications such as CE, BV, SGS, ISO9001, which ensures supreme quality. HBS has provided numerous well-known companies with wide range of solutions and reliable marking equipment.
The price is not expensive considering it's factory price. Welcome to visit our factory!
